Secondary Reforming Catalyst (DZC-1919; DZC-2518)

Brief Introduction

DZC-1919 is the secondary reforming catalyst with nickel as active component, which is used for a variety of gaseous hydrocarbon containing raw gas and air, oxygen rich or pure oxygen steam conversion device. It is generally used in combination with DZC-2518 catalyst. DZC-2518 as a thermal protection agent with a small amount of nickel as the active component and alumina as the carrier, is designed to be loaded at the upper section of the secondary reformer where both temperature and steam partial pressures are high to protect the catalyst from lower section.

The reaction is summarized as below

Typical physical and chemical property

Name

Secondary Reforming Catalyst

Model

DZC-2518 (thermal protection)

DZC-1919

appearance

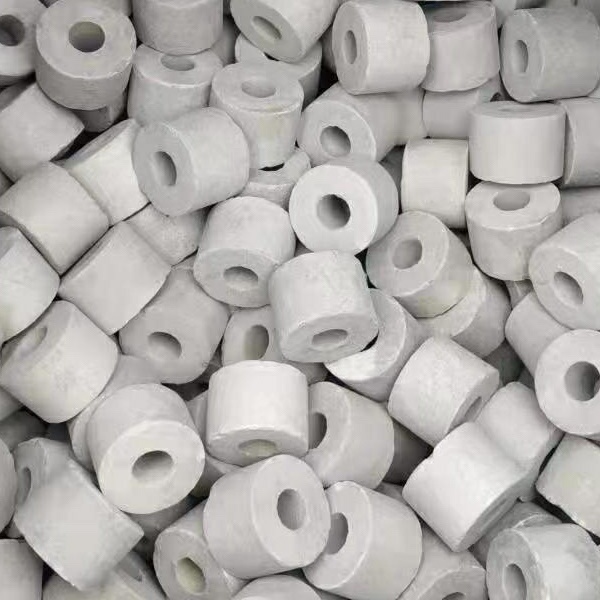

Gray-black, cylindrical

Tile gray, cylindrical

Size (mm)

Φ25×1618×10

Φ19x19x9

Bulk density (kg/l)

1.00

0.85±0.05

Average crushing strength/(N/P)

≥400

≥400

CaO

\

5-9

K2O+Na2O

≤0.3

\

Fe₂O₃(%)

≤0.35

≤0.35

NiO %

≥5

≥14

SiO₂ %

≤0.2

≤0.2

Al₂O₃(%)

89

70~80

Conditions of Use

Pressure: 05.0 MPa

Temperature:5501450

Water to carbon ratio (V/V):2.55.0
