Chemical Composition
|
Component |
Content (wt.%) |
|
NiO |
≥14 |
|
CaO |
Proprietary |
|
SiO₂ |
<0.2 |
|
Al₂O₃ |
Balance |
Physical Properties
|
Parameter |
Specification |
Unit |
|
Appearance |

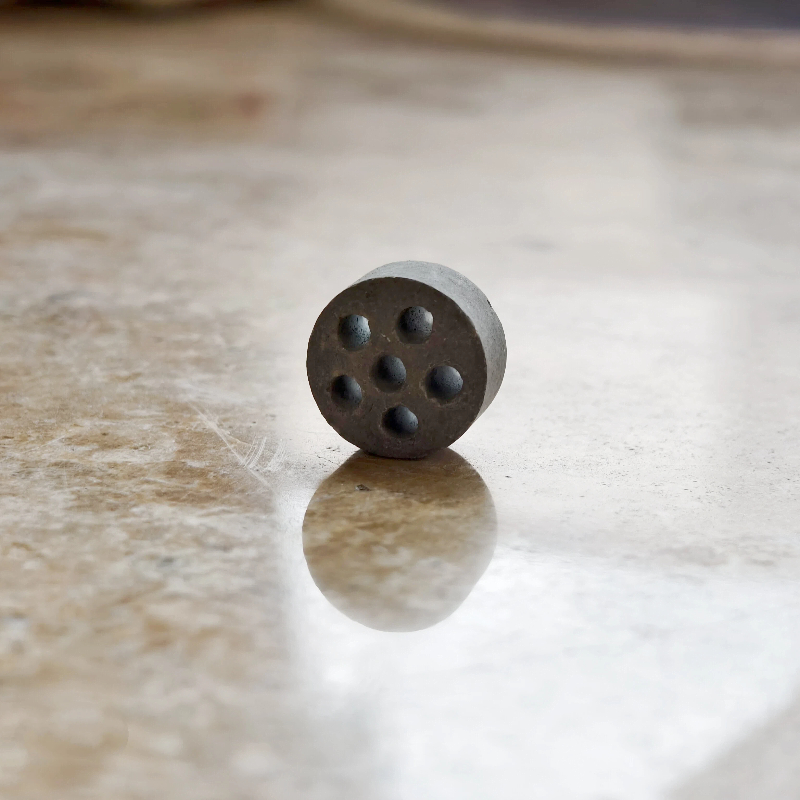

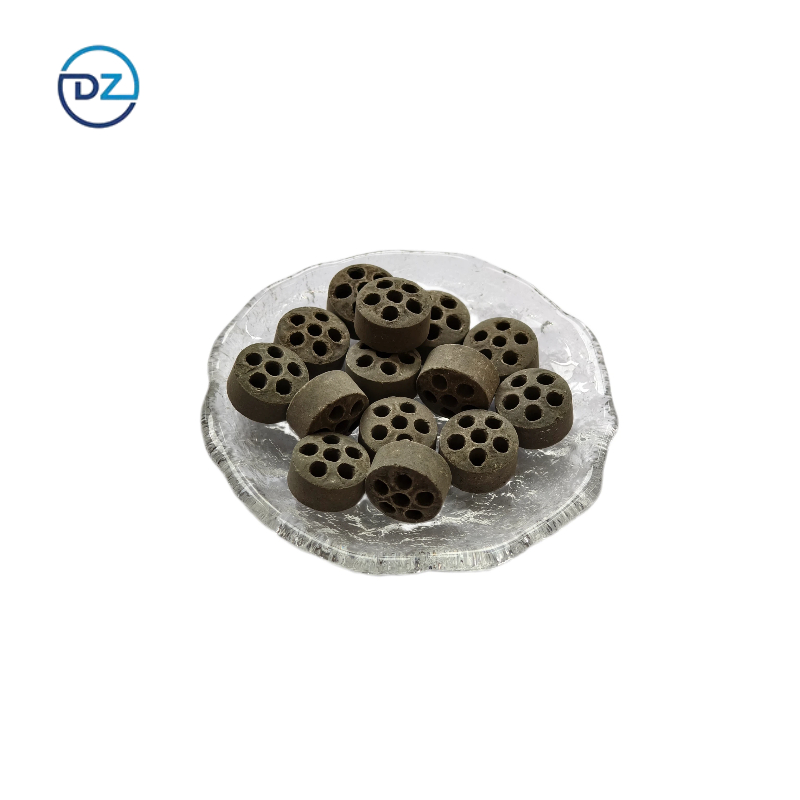

Six-holes cylinder with both domed |
- |
|
Particle size |
φ 16×9×3.5 |
mm |
|
Bulk density |
0.95~1.05 |
kg/l |
|
Crush strength |
≥400 |
N/gr |
Operation Conditions
|
Parameter |
Range |
Unit |
|
Operating temperature |
430~650 (In) |
°C |
|
600~980 (Out) |
°C |
|
|
Steam to carbon ratio |
≥2.2 |
- |
Key Features
Optimized for ethanol steam reforming applications
Enhanced resistance to carbon deposition
High mechanical strength and thermal stability
Excellent activity at lower temperature ranges
Stable performance over extended operation periods
